How Does the Frequency of a Signal Influence the Size and Type of Antenna Required?

Have you ever wondered why antennas look so different from each other? Why a TV antenna has multiple parallel elements of different lengths? Why a satellite dish is a curved bowl shape rather than rods? Why antennas designed for different services – television, radio, mobile phones – are such different sizes?

The answer to all of these questions comes down to one fundamental relationship: the relationship between the frequency of an electromagnetic signal and the physical size of the antenna required to receive it efficiently.

This relationship governs almost everything about antenna design, and understanding it gives you genuine insight into why the antenna on your roof looks the way it does – and why what works for your neighbour might not work for your property.

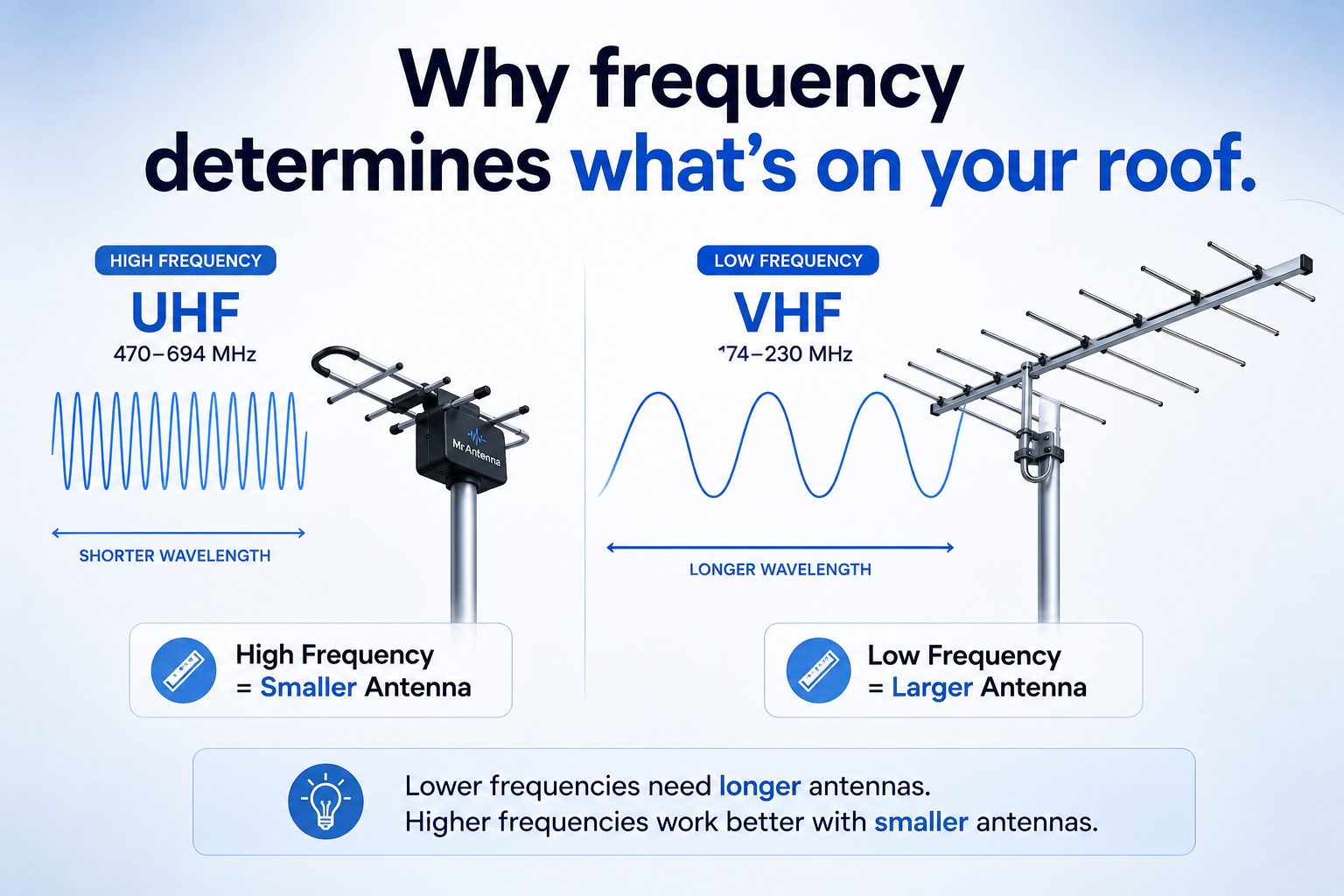

The Fundamental Relationship: Frequency, Wavelength, and Antenna Size

Electromagnetic waves – including radio waves, microwaves, visible light, and all the signals your TV antenna receives – travel through space at the speed of light (approximately 300,000 kilometres per second). Every wave has two key properties: frequency and wavelength.

Frequency is how many complete wave cycles occur per second, measured in Hertz (Hz). Television broadcast signals in Australia are measured in Megahertz (MHz, millions of cycles per second) and Gigahertz (GHz, billions of cycles per second).

Wavelength is the physical distance between two adjacent identical points on a wave – the length of one complete cycle. Wavelength and frequency have an inverse relationship: higher frequency = shorter wavelength. Lower frequency = longer wavelength.

The formula is straightforward: Wavelength (in metres) = Speed of light ÷ Frequency

For example:

• A signal at 500 MHz has a wavelength of 300,000,000 ÷ 500,000,000 = 0.6 metres (60cm)
• A signal at 200 MHz has a wavelength of 300,000,000 ÷ 200,000,000 = 1.5 metres
• A signal at 1 GHz has a wavelength of 300,000,000 ÷ 1,000,000,000 = 0.3 metres (30cm)

Why does this matter for antennas? Because an antenna element resonates most efficiently when its length is a specific fraction of the wavelength of the target signal – typically one quarter or one half of the wavelength. An antenna element that is exactly the right physical length for the target frequency captures significantly more energy than one that is either too long or too short.

What This Means for Australian Television Reception

Australian free-to-air digital television currently broadcasts in the UHF frequency band – roughly 520 to 820 MHz, depending on the location and channel.

At these frequencies, the wavelength ranges from approximately 37cm to 58cm. A half-wave dipole element for a 600 MHz signal would be approximately 25cm long. This is why the individual elements on a standard Australian UHF television antenna are relatively short – each one is sized to resonate at the UHF frequencies used for digital TV broadcasting.

Australia previously used VHF frequencies (46–230 MHz) for analogue television, which were switched off by 2013 during the digital switchover. VHF signals have much longer wavelengths – a half-wave dipole for a 100 MHz signal would be approximately 1.5 metres long. You may notice older antenna installations have some very long elements – these were part of the VHF section of the antenna, designed for the frequencies used by analogue broadcasts. These are now largely redundant for Australian television, though some regional areas still use VHF frequencies for DAB+ digital radio.

Why Antennas Have Elements of Different Lengths

Looking at a typical Australian UHF television antenna, you’ll notice it has many elements of slightly different lengths. This is intentional and directly related to frequency:

Australian digital TV broadcasts use multiple frequency groups across the UHF band – not a single frequency. Different channels in the same area may broadcast on frequencies ranging from 520 MHz to 820 MHz. An antenna designed to receive all of these channels needs elements optimised for different frequencies within that range.

A log-periodic antenna explicitly uses this principle – it has elements of progressively different lengths, each optimised for a different part of the frequency range. The result is an antenna that performs consistently well across the full range of frequencies used for Australian digital broadcasting.

A Yagi antenna uses a different approach – it achieves high gain at a specific design frequency, with the multiple director elements all tuned to that frequency. High-element Yagi designs intended for Australian use are typically optimised for the centre of the relevant frequency group in the area they’re designed for.

How Frequency Affects More Than Just Element Size

The frequency of a signal affects antenna design in ways beyond just the physical element lengths:

Beam width. Higher frequency antennas (smaller wavelength) can achieve tighter, more directional beam patterns with fewer physical elements than lower frequency designs. A UHF Yagi can achieve high directional gain with a relatively compact physical design.

Signal penetration through materials. Lower frequency signals penetrate building materials more effectively than higher frequency signals. This is one reason why UHF digital TV signals can be more easily blocked by building materials than the old VHF analogue signals were – and why indoor antennas often work less well in Australia than people expect.

Satellite frequencies. Satellite television services – including Foxtel and the VAST system – operate at Ku-band frequencies of approximately 10–12 GHz. At these frequencies, the wavelength is only 2.5–3cm. A resonant element at these frequencies would be tiny – which is why satellite systems use a parabolic dish (which relies on focusing reflected energy rather than element resonance) rather than a conventional rod-type antenna.

5G interference. The expanding 5G mobile network in Australia uses frequencies in the 700 MHz, 2.6 GHz, 3.5 GHz, and 26 GHz bands. The 700 MHz 5G band is very close to the lower end of Australia’s UHF television broadcast frequencies – which is why 5G interference with television reception is a documented problem in some inner-suburban areas. Older antennas without LTE/5G filtering may be susceptible to this interference. A correctly specified modern antenna with integrated filtering rejects this interference.

What This Means When Choosing Your Antenna

Understanding the frequency-size relationship helps explain several practical situations:

Why cheap antennas often underperform. A cheap antenna may have elements that are the approximately correct length but aren’t precisely manufactured. A small error in element length creates a small mistuning relative to the target frequency – and while this may seem minor, it translates to reduced gain across the affected frequency range, which in a marginal signal area can be the difference between clear reception and pixelation.

Why do some properties need specialist antennas? Different parts of Australia broadcast on different frequency groups. An antenna correctly specified for one state may not perform optimally in another. Installers who use calibrated signal meters and correctly match antenna specifications to the frequency groups being received at a specific property achieve better results than those who use a standard product across all locations.

Why antenna age matters for frequency response. Over time, the elements of an antenna corrode and the connections degrade. This changes the effective electrical length of the elements – detuning them from their design frequency. An antenna that performed well when new may become progressively mis-tuned over a decade, producing the kind of gradual deterioration in reception quality that many homeowners attribute to other causes.

What Mr Antenna Does Differently

Mr Antenna’s licensed technicians use calibrated RF signal meters that measure actual signal strength across specific frequency bands at your property. This tells us:

• Which UHF frequency groups are being received at your address
• The signal level at each relevant frequency
• Whether any specific frequency groups are weaker than others, indicating antenna mistuning, interference, or obstruction

With this information, we match the antenna design – element configuration, boom length, and any required filtering – specifically to the frequencies being broadcast in your area and received at your property. The result is an installation that’s correctly tuned, not just approximately pointed.
